Pyrometer IMPAC IS 50-LO plus

● Country of origin： Germany

● Manufacturer： LumaSense Impac

● About quotation： Please call 24 - hour service hotline：400-992-1886

Pyrometer with fiber optics for non-contact measurements on metals, ceramics, graphite etc. with temperature ranges between 550 and 3500° C

Advantage:

● Very short response time below 1 ms

● Extremely short spot sizes, min. 0.45 mm

● Built-in LC display

● Laser targeting light

● Parameter adjustments via integrated key pad or interface

● Interface RS232 / RS485 switchable

● Test current output

Description:

The pyrometers IS 50-LO plus and IGA 50-LO plus are digital, highly accurate pyrometers with fibre optics for non-contact temperature measurement on metals, ceramics, graphite etc. between 250° and 2500°C. The IS 50/67-LO plus is a special version with an extremely short wavelength for measurement of molten metals with a very high emissivity.

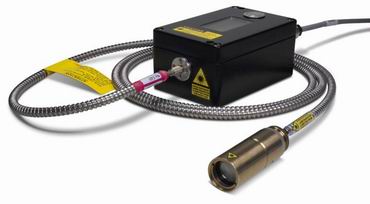

The instrument is equipped with a fiber and an exchangeable optical head. The fibre and optical head are unaffected by electromagnetical interferences (e.g. induction) and can be used in high ambient temperatures up to 250°C.

Two different types of optical heads for different measuring distances and very small spot sizes are available. A laser targeting light enables the exact alignment onto the measuring object.

The very short response time of below 1 ms facilitates the measurement of fastest heating processes. The pyrometer is equipped with a display which shows in measuring mode the current temperature. Additionally all parameters can be read if they are changed via the integrated keys at the instrument.

Via serial interface and the provided software InfraWin the temperature can be displayed and stored on a PC, parametrizing can also be done.

Typical field of application:

● metal moulds                                       ● pressing tools

● bearings, bearing housings                 ● preheating

● annealing                                             ● tempering

● sintering                                               ● soldering

● rolling                                                   ● brazing

● normalizing
