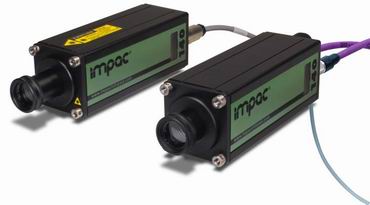

Pyrometer IMPAC IS 140

● Country of origin： Germany

● Manufacturer： LumaSense Impac

● About quotation： Please call 24 - hour service hotline：400-992-1886

Advantage:

● Temperature ranges between 550 and 3300° C

● Short response times < 1 ms optional 500 µs

● Extremly small spot sizes, min 0.35 mm

● Built in digital display with temperature indication

● Optimized thru-lens view finder  or laser targeting light

● Test current output

● Housing with precision mounting rail for safe mounting and accurate alignement

● Interface RS232 / RS485 switchable

● Focussable optics

Description:

The pyrometers IS 140 and IGA 140 are digital, highly accurate pyrometers for non-contact temperature measurement on metals, ceramics, graphite etc.  For optimal match of the instrument to the application 3 different focusable optics with extremely small spot sizes are available.

The pyrometers parameters can be selected vie the integrated key pad, the settings are indicated on the built-in LC-Display. In measuring mode the actual temperature is indicated.

The pyrometer are equipped with RS232 and RS485 serial interfaces (switchable inside the pyrometer). This enables additionally the reading of temperature and pyrometer parameters via the provided InfraWin PC-software. If neccessary the parameters can be changed via PC.

A laser targeting light or thru-lens view finder for exact alignment of the pyrometer is available.

Typical applications:

● preheating               ● annealing                ● tempering

● welding                    ● forging                    ● hardening

● sintering                  ● melting                    ● soldering

● rolling                      ● brazing                    ● normalizing
