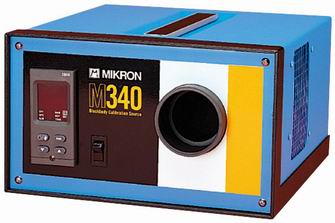

Calibration source M340

--Country of origin：USA！(Manufacturer：LumaSense Mikron)

Compact, portable, for low temperatures. Very high temperature stability.

-20 ... 150°C

Heated emitter shape:

Thermally uniform plate

Emissivity:

effective = 1.00

at 8...14 µm

(For emissivities of other wavelength temperature correction tables are available)

Standard calibration method:

pyrometric

(Large area calibration sources with temperatures up to 400°C can optionally be calibrated thermometrically.)

Aperture diameter:

51mm

Temperature uncertainty:

1°C

Average warm-up time:

6 min (to 100°C)

Dimensions [mm] (HxWxD) / Weight:

167 x 280 x 280 / 7.1 kg
