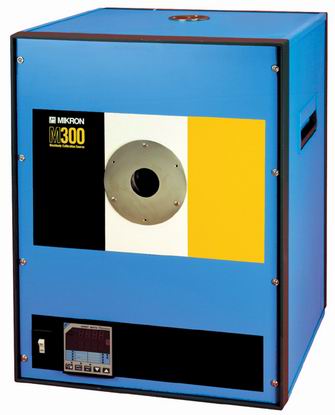

Calibration source M300

--Country of origin：USA！(Manufacturer：LumaSense Mikron)

Large calibration source with high emissivity for calibration indipendent of the wavelength.

200 ... 1150°C

Heated emitter shape:

Spherical

Emissivity:

effective = 1.00

at 8...14 µm (<230°C); 0.7...1.8 µm (>230°C)

(For emissivities of other wavelength temperature correction tables are available)

Standard calibration method:

pyrometric

Aperture diameter:

51 mm

Temperature uncertainty:

0.25% of reading +1°C

Average warm-up time:

60 min (to 1000°C)

Dimensions [mm] (HxWxD) / Weight:

640 x 500 x 550 / 80 kg

For more information, Please call 24 - hour service hotline：400-992-1886
