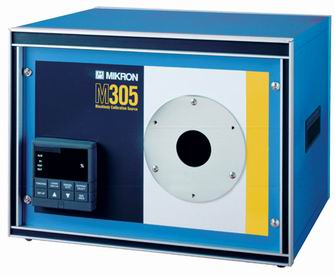

Calibration source M305

--Country of origin：USA！(Manufacturer：LumaSense Mikron)

The M305 blackbody calibration source design achieves significant weight and size reduction over the M300 with only minor sacrifices in specification and performance, making it an ideal unit where portability is required or space is limited. The spherical cavity yields an emissivity of 0.995 over the temperature range of 100°C to 1000°C with an aperture of 25mm. An integrally mounted PID controller completes this versatile calibrator.

Temperature Range: 100 to 1000° C

Accuracy*: ±0.25% of reading ±1° C

Temperature Resolution: 0.1°

Stability: 0.5° C per 8 hour period

Emitter Diameter: 25mm (1")

Heated Cavity Shape: Spherical

Emuiter Solid Angle: 20°

Emmisivity (effective): +0.995

Quotations for custom designs and variations are available upon request.

* Accuracy calibration performed radiometrically. The uncertainty of spectral emissivity and transfer standard are already included.
