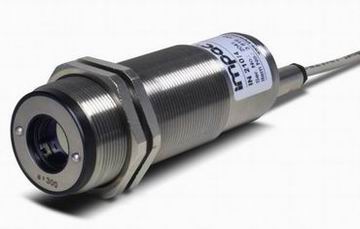

Pyrometer IMPAC IN 210/4

● Country of origin： Germany

● Manufacturer： LumaSense Impac

● About quotation： Please call 24 - hour service hotline：400-992-1886

Pyrometer for temperature measurement of of metal parts in flame heated furnaces. The chosen spectral range avoids the influence of combustion gases.

Advantage:

● Measurement through flames and combustion gas without influencing the measurement

● Penetrating measurement into glass

● Small, robust stainless steel housing for easy installation, with electrical connector for facile mounting / demounting

● 2-wire technique for current supply and temperature measurement at the same time

● Internal digital signal processing for high accuracy

● High quality optics for detection of small measuring objects

● Temperature subrange programmable for adaptation of the analog output to the measuring task

Description:

The IN 210/4 is a stationary pyrometer for non-contact temperature measurement of objects in flame heated furnaces. The narrow spectral range of 3.9 µm avoids the influence of combustion gases to the measurement. Another application is the measurement of glass if a small penetration into the glass is necessary (e.g. glass drop). Measurement errors caused by partially cooled down surfaces can be avoided.

The instruments are operating as digital two wire pyrometers. This technique combines the high accuracy of the digital signal processing with the simple connection and operating with two wires.

The setting of the programmable parameters such as emissivity, subrange and response time can be adjusted either with the portable setting device HT 6000 or via USB adapter and the setting software InfraWin.

This enables the instrument to be adapted to various measuring tasks. On request all necessary values can be set ex works.The solid and robust design of the instrument guarantees high operational safety even in rough industrial environments.
