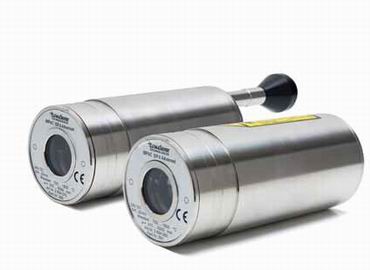

Pyrometer IMPAC ISR 6 Advanced

● Country of origin： Germany

● Manufacturer： LumaSense Impac

● About quotation： Please call 24 - hour service hotline：400-992-1886

Stationary, digital ratio pyrometer for non-contact temperature measurement in ranges between 600 and 3000°C

Advantage:

● Widest temperature ranges for most flexible process adaptation

● Highest accuracy and repeatability in its class

●“Dirty Window” Warning

● Fully digital core for sub-ranging and adopted analog output

● Very fast 2 ms response time for highly dynamic processes

● Best optics in its class with manual focus capability

● 4 digit LED display

● Robust, stainless steel sensor for harsh environments (IP65/NEMA4)

Description:

The ISR 6 Advanced is a digital, compact and fast 2-color pyrometer for non-contact temperature measurement. The pyrometer measures in the 2-color method (ratio method) in which two adjacent wavelengths are used for the temperature determination.This technique offers the following advantages compared to standard 1-color pyrometers: the temperature measurement is largely independent of the object’s emissivity and in wide ranges unaffected by dust and other contaminants in the field of view.

The measuring object can be smaller than the spot size, measurements through dirty viewing windows are possible up to a certain contamination. Additionally, the pyrometer can be switched to 1-color mode and used like a conventional pyrometer in a spectral range near 0.9 μm. The response time of only 2ms facilitates the measurement of fast processes. The ISR 6 can be connected to a PC through an RS485 to USB connection, enabling parameter adjustments made using the InfraWin software. This can be used for temperature indication, data logging and further analyzing of complete temperature processes.

Typical applications:

● Steel Making

● Metal Processing - Induction Processes: Hardening, Welding, Forging, Brazing, Soldering, etc.

● Metal Processing - Noble Metals Melting and Purifying

● Metal Processing - Wire/Rod Mill Water Box Measurement, Laying Head & Air Cooling Conv.

● Solar Industry - Silicon Processing Polycrystalline Cashing in Vacuum Melting Furnace, Silicon Ingot Growth in CVD Reactors (Siemens Process), Crystal Pulling of Monocrystalline Silicon (Czochralski Process)

● Glass Industry - Gob Temperature Measurement

● Cement Industry - Clinker temperature in rotary kilns
